Interesting Wise-Lock padlock

Information about locks themselves. Questions, tips and lock diagram information should be posted here.

Interesting Wise-Lock padlock

Postby I Pik U » 13 Sep 2006 17:28

The is a Wise-Lock padlock we have in a small "Museum" in our store.

The keys have "Concentric Tube Lock" one one side.
It works similar to an Ace 7 pin lock (or similar) in such that you insert the key, pushing it all the way straight in and this moves the spring loaded tumblers to the shear line. There are only 3 tumblers, one inside the other. Once the tumblers are pushed to the shear line, you can turn the key clockwise, rotating half the lower body and opening the lock.

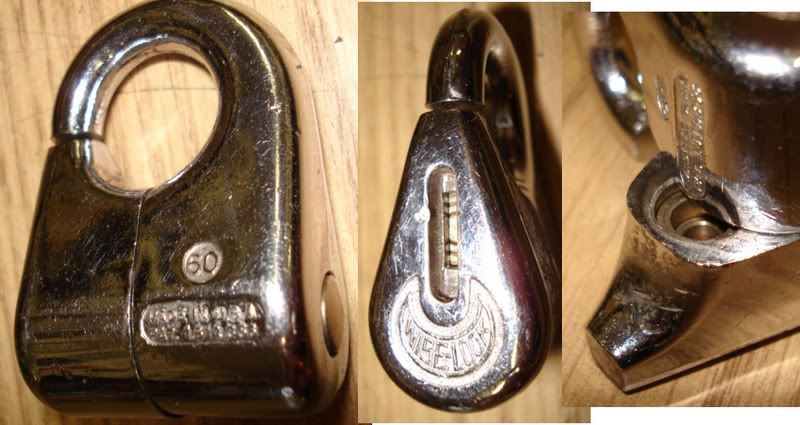

The first pic shows the closed lock, the keyway and the tumblers not at shear line:

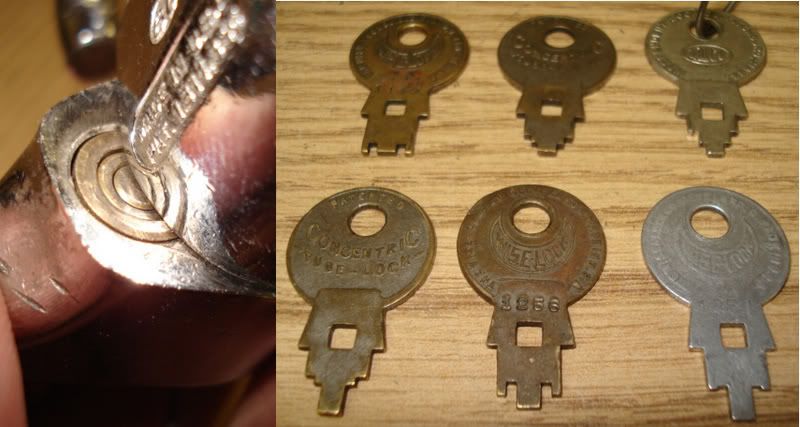

The second picture shows the pins at the shear line and 6 different Wise-Lock keys.

Been playing with locks since '68.
I Pik U

Posts: 304
Joined: 8 Sep 2006 11:56
Location: Ontario, Canada

Postby UWSDWF » 13 Sep 2006 17:30

cool shi...stuff :wink:
DISCLAIMER:repeating anything written in the above post may result in dismemberment,arrest,drug and/or alcohol use,scars,injury,death, and midget obsession.
UWSDWF
Supporter
Supporter

Posts: 4786
Joined: 27 May 2006 13:01
Location: Toronto, ON. Canada

Postby unbreakable » 13 Sep 2006 17:32

That is supercool, any chance of some breakdown pics? :lol: :lol:

Not bloody likely, huh?
unbreakable

Posts: 1682
Joined: 28 Oct 2005 18:55
Location: Nova Scotia, Canada

Exploded view of Wise 60C

Postby Peter Martin » 13 Sep 2006 18:32


This is an exploded diagram of the Wise padlock. Are they still in business?
Peter Martin

Posts: 396
Joined: 1 Aug 2004 0:14
Location: SD

Postby Schuyler » 13 Sep 2006 18:32

Well, Unbreakable, I guess he showed you ;)
Schuyler
Supporter
Supporter

Posts: 3448
Joined: 24 Jul 2006 1:42
Location: Boston

Key blanks still available

Postby Peter Martin » 13 Sep 2006 18:41

Ilco still makes key blanks for these old locks--"W67".
Peter Martin

Posts: 396
Joined: 1 Aug 2004 0:14
Location: SD
