Mechanical Help

by **Fah_Cue** » 28 Dec 2005 23:55

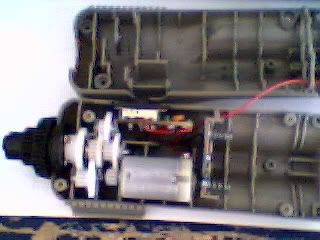

ok i got this is wat i got to work with to make a eletric pick

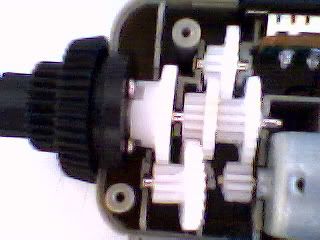

it spin, but i need help in changing it into a up/down motion

thnx
Fah

by **zeke79** » 29 Dec 2005 1:14

Easy for me to see....... I'll let you stew on it for a couple days to try and figure it out. It's not that hard if you think about the operation that is needed..........

by **mckutzy** » 29 Dec 2005 1:35

i was waiting for a response from someone to post about this.

by **freakshow** » 29 Dec 2005 1:41

took me 5 minutes to figure that one out... If need be, i'll give fahcue a day before i post a picture on how. There's probably a different way then what I'm thinking, however.

by **Fah_Cue** » 29 Dec 2005 1:46

TORUCHERi tell you, its torucher... lol

by **Shrub** » 29 Dec 2005 8:31

To be honest the only way to go about it is the way its done on the bosch screwdriver mod, forget the gearbox and fit a cam to the motor though.

by **zeke79** » 29 Dec 2005 8:45

Shrub wrote:To be honest the only way to go about it is the way its done on the bosch screwdriver mod, forget the gearbox and fit a cam to the motor though.

Awww Shrub, I was hoping he would think about it for a bit and then find your bosch thread

.

by **Shrub** » 29 Dec 2005 8:47

sorry, delete our 2 posts if you want :wink:

by **Fah_Cue** » 29 Dec 2005 19:39

are you implying that ive been here and havent seen your bosch thread

ive read it but iam more a picture guy, you know wat they say a picture means 1000 words.... or somthing like that. I know you do have links there but they arnt working for me they just go to random pictures..

by **mckutzy** » 29 Dec 2005 19:50

if thats the case ur got about 970 word left. :lol:

.... u have to use a cam on a lever with mabe a spring. think about what way the actions work. or what i can see just afix a weight to the motor spindle, ofset it from the center. this should cause enough vibration to be of some use. oh.... take out the gears.

by **mckutzy** » 29 Dec 2005 19:53

i have used an EL-cheapo type of motorized tooth brush with the exact setup i sugested. it workes fine.

by **Shrub** » 29 Dec 2005 20:04

Well the thread was full of pics i guess they may have been removed, ill go and see.

by **Shrub** » 29 Dec 2005 20:08

Yes im implying your havent read it no matter how long youve been here, all the pics are still on that thread but the original links were hosted with tiny pic who after 30 days reasign the url.

Zeke can you remove the links from that post and insert a line at the bottom saying the pics follow, cheers.

by **Shrub** » 29 Dec 2005 20:25

Shrub wrote:
Zeke can you remove the links from that post and insert a line at the bottom saying the pics follow, cheers.

Or whoever, obviously :wink:

by **machinist** » 30 Dec 2005 1:16

I have two concepts:

#1 create a pivot hinge behind the gear and create two "ears" to guide the up/down motion and some kind of return spring sytem like a rubberband.
[img=http://img528.imageshack.us/img528/6751/concept10uk.th.jpg]

#2remove all gears and create your own pivoting system based on BENDING the motor shaft. I'm working on somthing a lot like this made out of almuminum and steel contact points.

[img=http://img528.imageshack.us/img528/7949/concept28yc.th.jpg]
