6 Pin yale - lets see whats inside...

[Olson Burry]

Hello. Some of you may have read my thread regarding a brand new 6 pin "high security" Yale lock I bought for £17.50 a week or so ago.

I managed to pick it in under 2 minutes and expounded a bit about it here

Anyway, seeing as im sure you're all dying to know what's inside, I took the step today and got it apart, not an easy decision I must admit but there we are.

Without further ado, here it is:

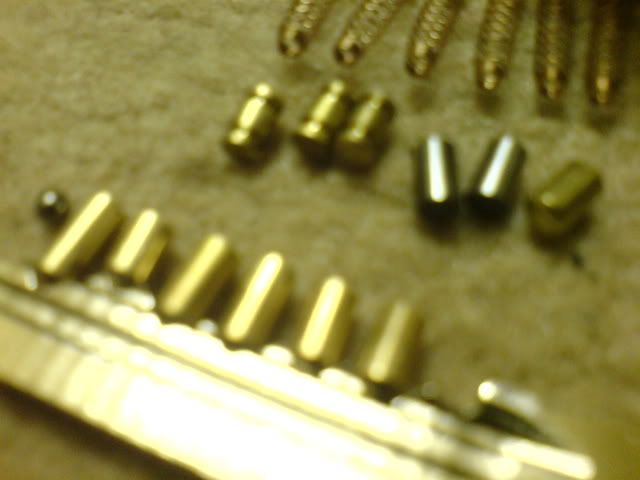

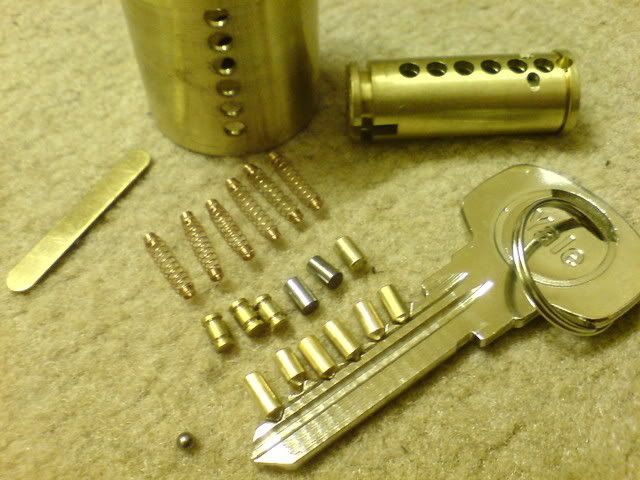

I present to you all the bits, including an unexpected surprise, the anti drill ball-bearing from the front.

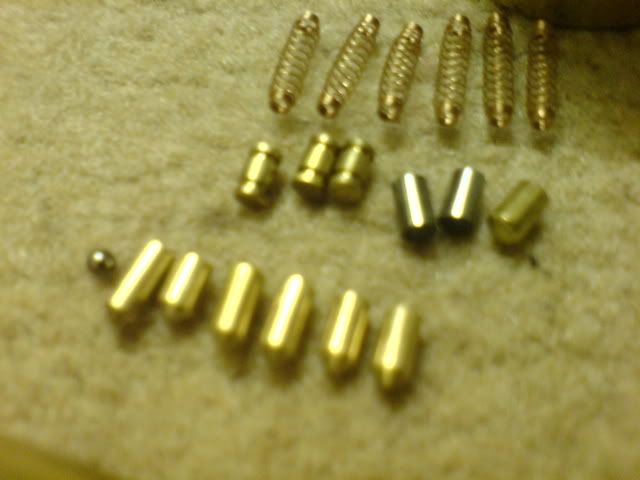

We can see it contains 3 spools I suppose you'd call them, and 2 steel pins for which I dont know the exact purpose. I assume it's to frustrate drilling.


Now all that remains is to put this bad boy back together! It is a wonderfully made lock with very low lolerances, I may even put it on my door if I can get it to work again.

Happy pickin', happy daze.

OB
-x-

[TheSnakey]

i belive you posted heaps of this because you got an sql error? it still posts so dont go back and repost it. also nice work getting your lock apart

[mstar01]

is that the yale X5 cylinder?

[jamesphilhulk2]

yeah i think it is a X5 cylinder i got one of those really nice lock to pick if your having a down day
