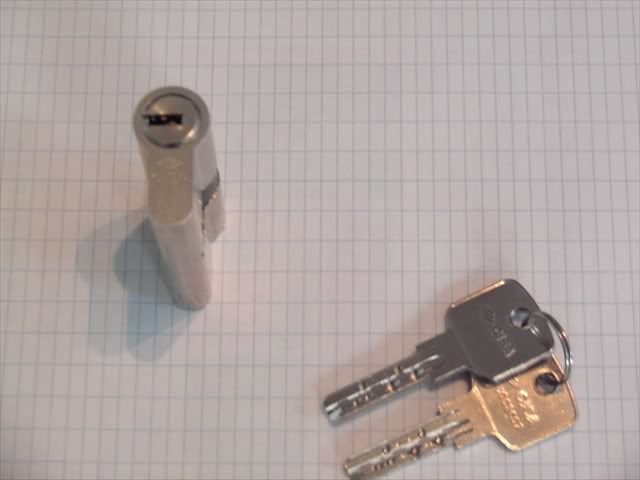

This is the cilinder

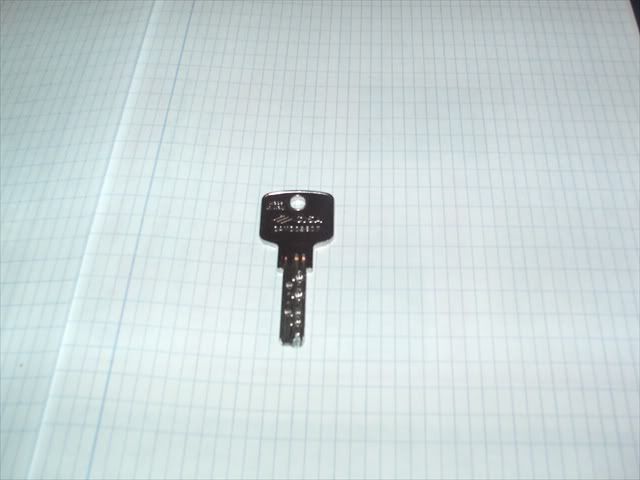

Close up of the key. Notice the 2 rows of cuts

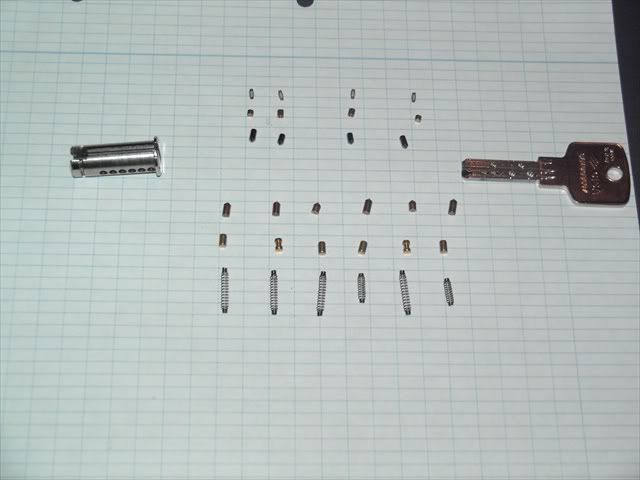

These are all the parts in the cylinder. I originally thought top row of pins would be passive pins , but they are active pins with their own springs and bottom pins. Also notice the difference in lenght of the bottom pins. And the difference in lenght of the springs in the primary pinstack.
Notice the small diameter of the plug. It has to be this small to fit all springs.

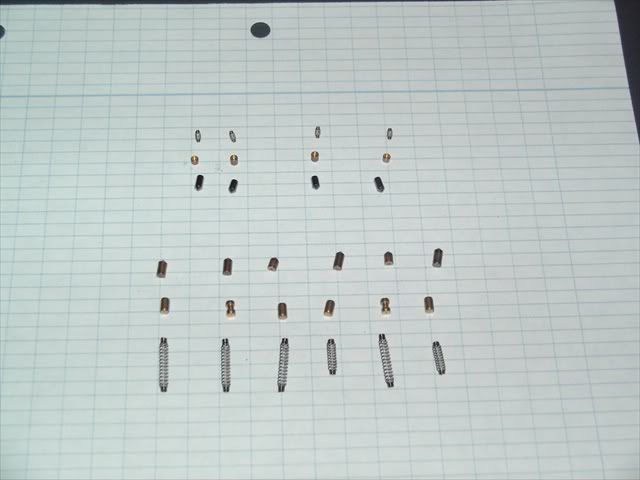

Detail of the pins and springs
From here you can see that the bottom* pins for the top row are dished , to save space

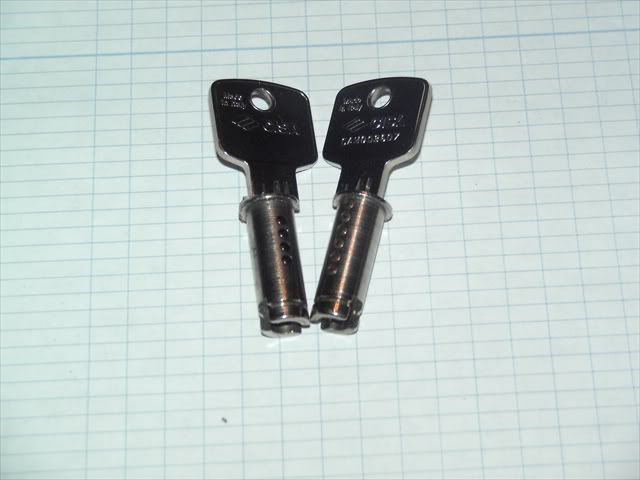

This pic shows both plugs with pins and key fitted.
I took another picture that showed the plug when photographed from the top , but its overlit and you can't see anything on it. It was suppost to show that the 4 holes at the top of the plug match the center 4 holes at the bottom. In the factory , these cilinders are probably put together that way.

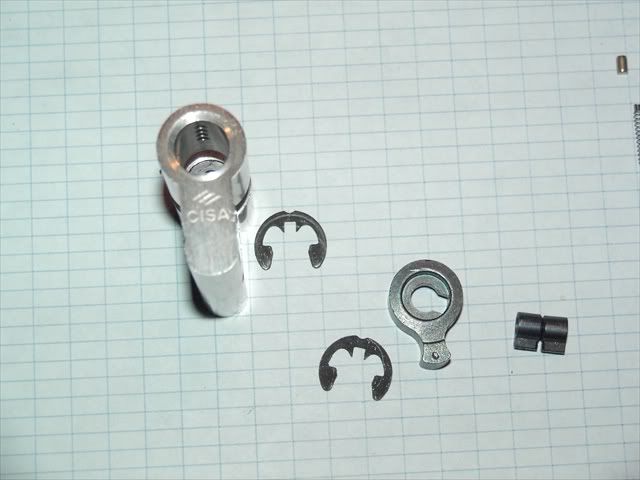

This last pic shows the rest of the parts of the cilinder. Here you can clearly see the very small bore. The holes for the pins are vissible from this angle. Also , check out the aggressive look of the circlips. I've never seen anything like it.
