Mosler with no Combination

[Safecrackin Sammy]

Nice opening!

Lug doors are always in need of maintenance on the mating surfaces.....

Buff down that rust with some fine sand paper/steel wool then put on a light coat of oil.

[Squelchtone]

Congratulations, well done!

Could we have a photo with the inner door cover off so we can see the way the lock is mounted? Those types of photos, especially in color are getting harder to come by. If you can take one with the lock cover off as well, that would be fantastic!

Thank you,
Squelchtone

[Kenneth_V]

Congrats on the opening!!!

[L4R3L2]

Good show!

[matchframe]

Nice opening!

Lug doors are always in need of maintenance on the mating surfaces.....

Buff down that rust with some fine sand paper/steel wool then put on a light coat of oil.

I will do that. Thanks!

[matchframe]

Congratulations, well done!

Could we have a photo with the inner door cover off so we can see the way the lock is mounted? Those types of photos, especially in color are getting harder to come by. If you can take one with the lock cover off as well, that would be fantastic!

Thank you,
Squelchtone

I will be glad to do that as soon as I can.

BTW, where can I get a key that you use to change the combo? Are those generic or model/serial number specific?

[Squelchtone]

Congratulations, well done!

Could we have a photo with the inner door cover off so we can see the way the lock is mounted? Those types of photos, especially in color are getting harder to come by. If you can take one with the lock cover off as well, that would be fantastic!

Thank you,
Squelchtone

I will be glad to do that as soon as I can.

BTW, where can I get a key that you use to change the combo? Are those generic or model/serial number specific?

Change keys come in different shapes and sizes and can sometimes be found on ebay. We would have to see the shape of the hole on the back cover of the combination lock case to narrow down which change key will fit.

Looking forward to your photos, thank you,
Squelchtone

[matchframe]

Here are some pictures of the back of the door and mechanism:
[image][/image]

Same shot but with the lug rotated to the open position
[image][/image]

With the outer plate off and the lock bolt in the open postition
[image][/image]

With the lock bolt in the lock position
[image][/image]

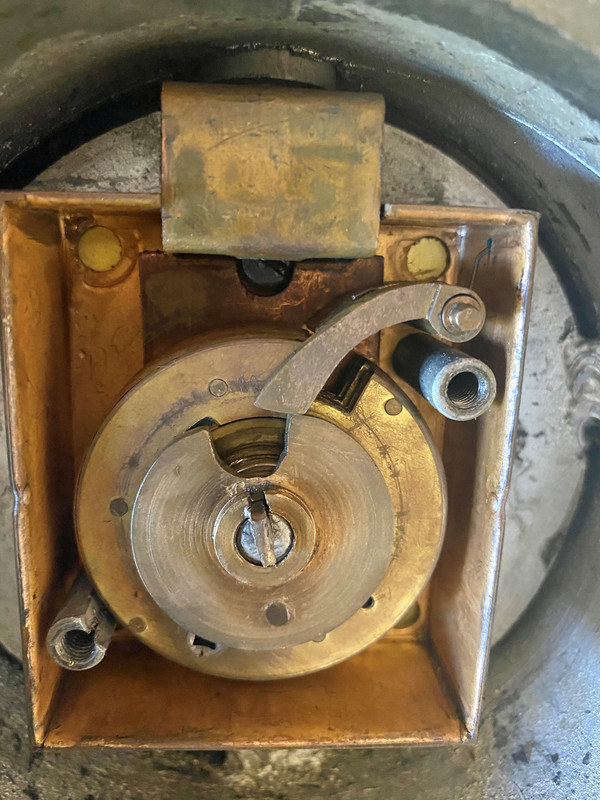

Open
[image][/image]

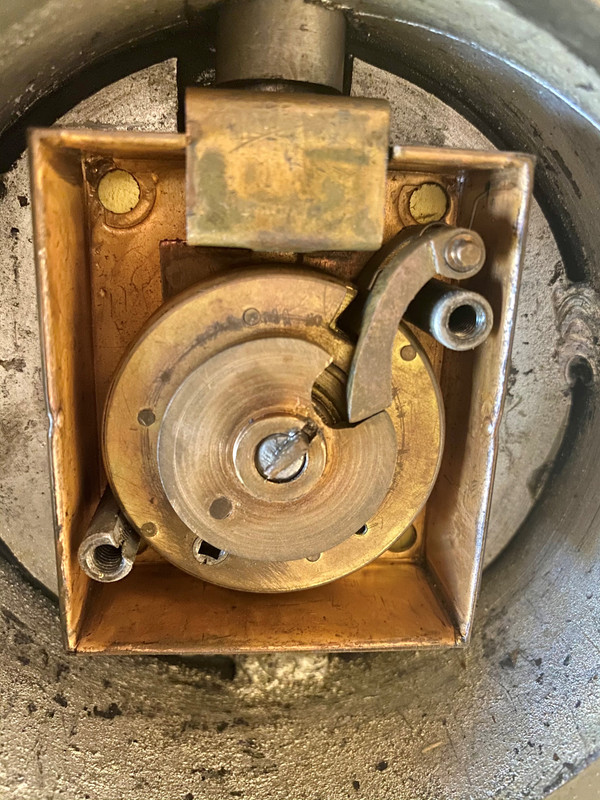

Closed
[image][/image]

[GWiens2001]

Simple, but robust and effective.

Gordon

[L4R3L2]

Lock looks to be in the Mosler KC-1 lineage.

[matchframe]

Lock looks to be in the Mosler KC-1 lineage.

That's good to know. Thanks!!

[Squelchtone]

Anyone have the HPC book kicking around that tells which change key to use on this lock?

[MartinHewitt]

01091 (two prongs) or 01096 (one prong), whatever that means.

[Squelchtone]

[quote="MartinHewitt"]01091 (two prongs) or 01096 (one prong), whatever that means.[/quote

Perhaps these are prongs?



Squelchtone

[MartinHewitt]

Yes, the tiny drawings look like that key.
