Picture of my Bump key.. Did I make it right?

by **underhand** » 8 Dec 2006 0:49

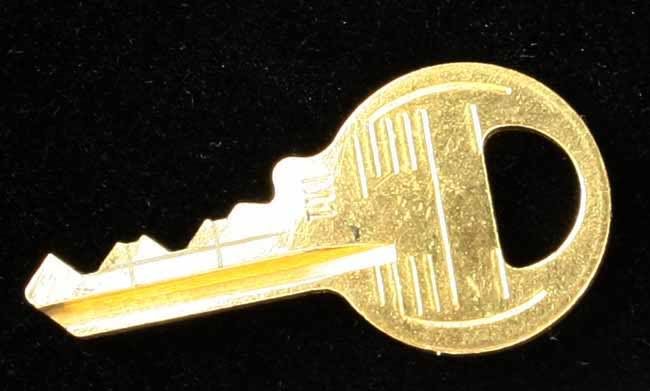

Please look at the Schlage bump key and let me know if thats what it should look like...
Thank you very much everyone for all your help


Link fixed

by **Romstar** » 8 Dec 2006 2:41

Dude, that Schlage key just looks wrong, and there is a very good possibility it will snap off in the lock.

I think you did a few things wrong with that one.

Romstar

by **2octops** » 8 Dec 2006 2:43

It's close. Spacing is off, angle of the cuts are off. I am assuming that you hand filed down a precut key?

What's up with the big squared off spot at the first cut?

I've seen worse that would work, so you should be in good shape.

by **Krypos** » 8 Dec 2006 2:48

uhh yeah...... i did NOT take this picture, and i dont know who did, but it has been helpful. maybe it can help you too. Y1, SC4, dunno, M1, SC1, KW1, dunno, dunno, dunno. top right, going clockwise.

by **Krypos** » 8 Dec 2006 2:51

looks like you want the SC1 and the KW1. if you cant tell which is which, then you should study up before making any more bumpkeys.

also, look for zeke's bumpkey pdf guide. thats really helpful.

and i hope you arent using this knowledge for misuse. then bad things happen. :wink:

by **d_goldsmith** » 8 Dec 2006 3:46

Just so everyone doesn't have to copy paste that url to see the original picture he posted about.

by **bumpit** » 8 Dec 2006 17:40

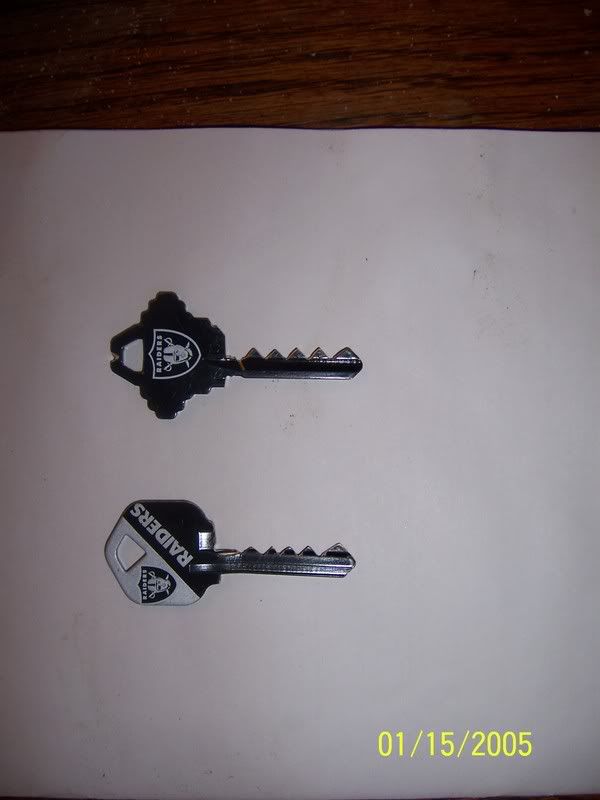

The keys might be wrong but the Raiders keys make up for it. It would be good if Zeke or some other skilled bumper could make a bump key template so everyone could make them and know if they were the right shape.

by **UWSDWF** » 8 Dec 2006 17:46

WICKED a survival saw for your key chain!

by **melvin2001** » 8 Dec 2006 17:50

lol your on fire today UWSDWF

by **zeke79** » 8 Dec 2006 19:40

UWSDWF wrote:WICKED a survival saw for your key chain!

by **parapilot** » 8 Dec 2006 20:19

UWSDWF wrote:WICKED a survival saw for your key chain!

Love it, you got me laughing again UWSDWF!!!

by **zeke79** » 8 Dec 2006 20:21

A bumpkey is easy to make from an old key. Here is a quick rundown.

Old cut key

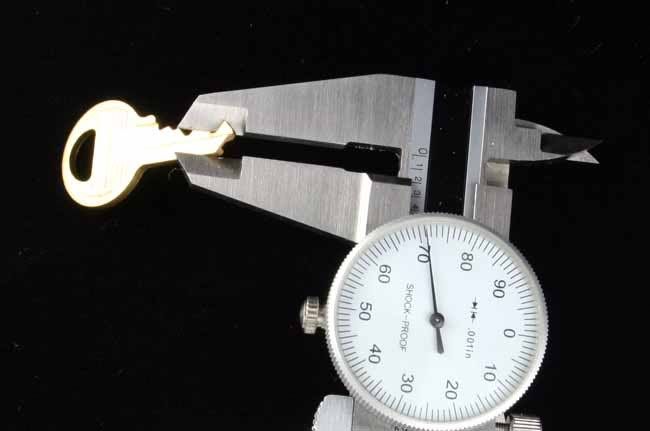

Measure deepest cut to determine what depth it is. If it is not at deepest cut per manufacturers spec for that lock note what depth it is.

Mark key at deepest depth and trace the centerline of the cuts down to the deepst cut mark.

Carefully file following your marks. When done, take a bit off the tip and shoulder and you now have a nice home made bumpkey.

by **Bioniccreeper03** » 8 Dec 2006 20:43

i have bump key templates but i dont know where i'd posted them i have a guide with templates and how to make them some one pm me and let me know where to post it

by **zeke79** » 8 Dec 2006 21:08

If you can get them to me, I'll host them publicly.
