Tubular Lock Cutaway *Large Picture Warning*

by **unbreakable** » 10 Dec 2006 21:05

Hey all,

Heres what I was working on while I should have been studying for exams. Anyways, this is far more interesting,

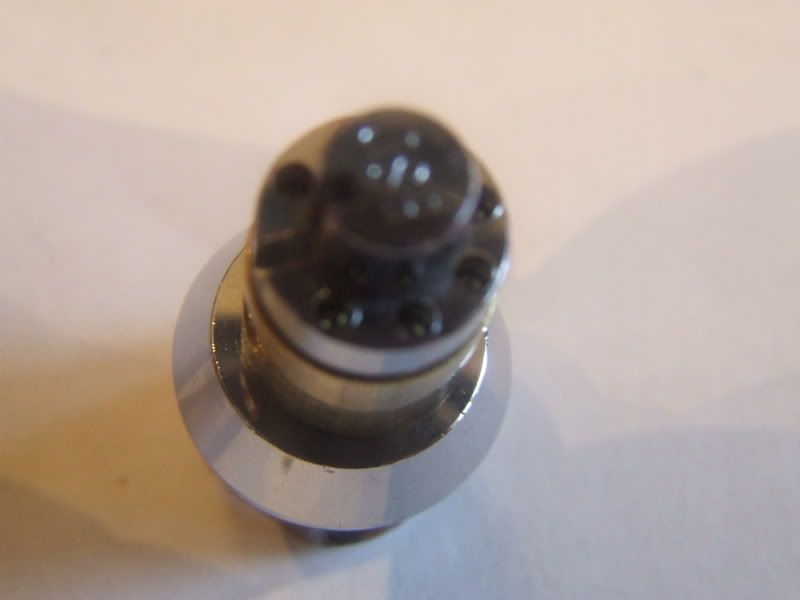

One lock freshly cut open, one unopened.

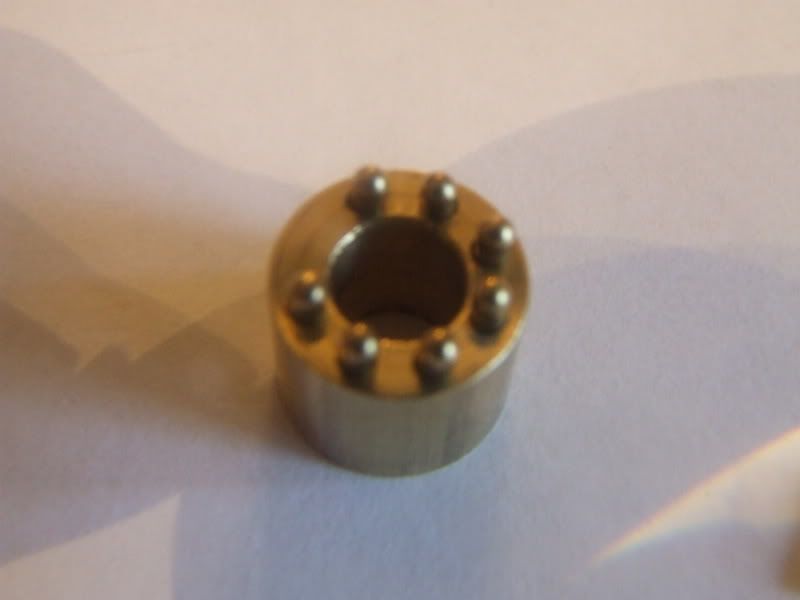

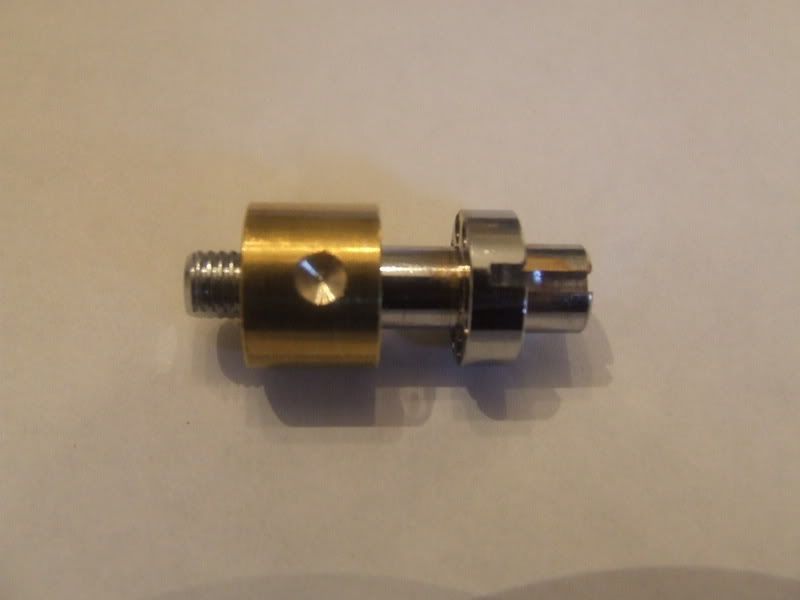

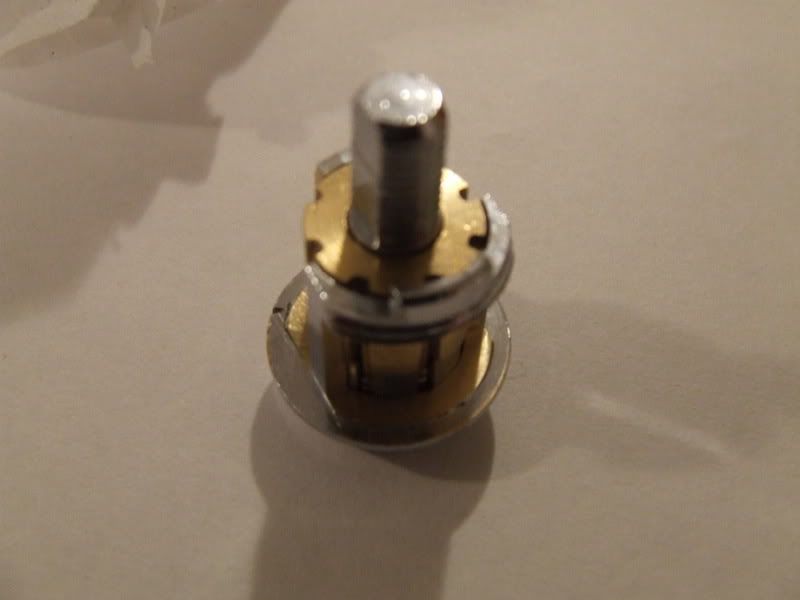

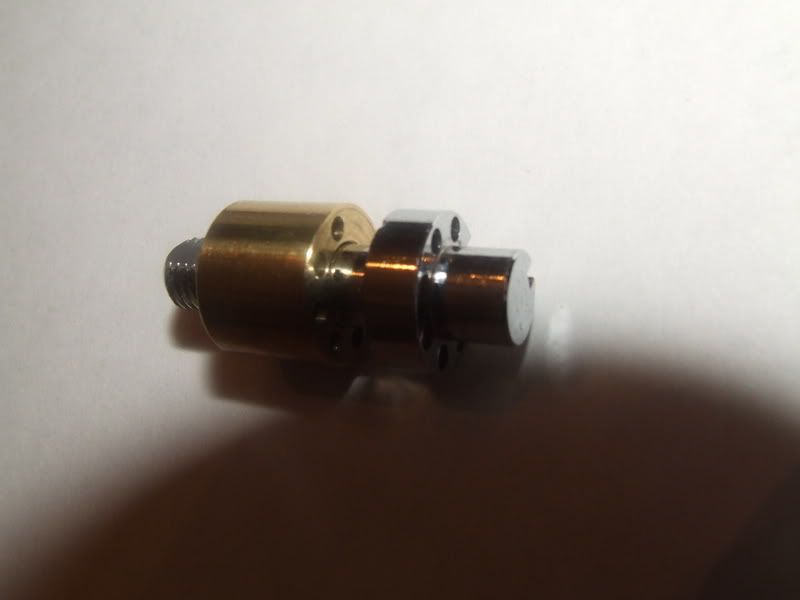

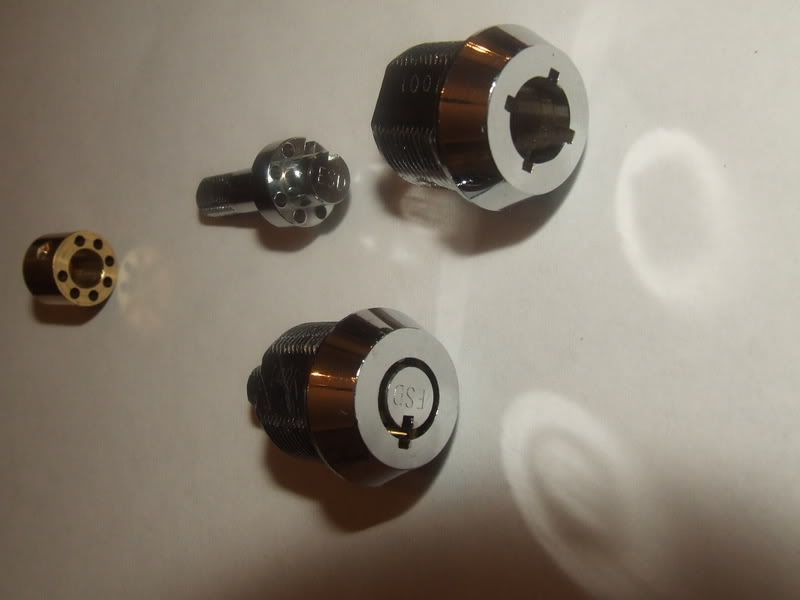

The two inner cylinders,

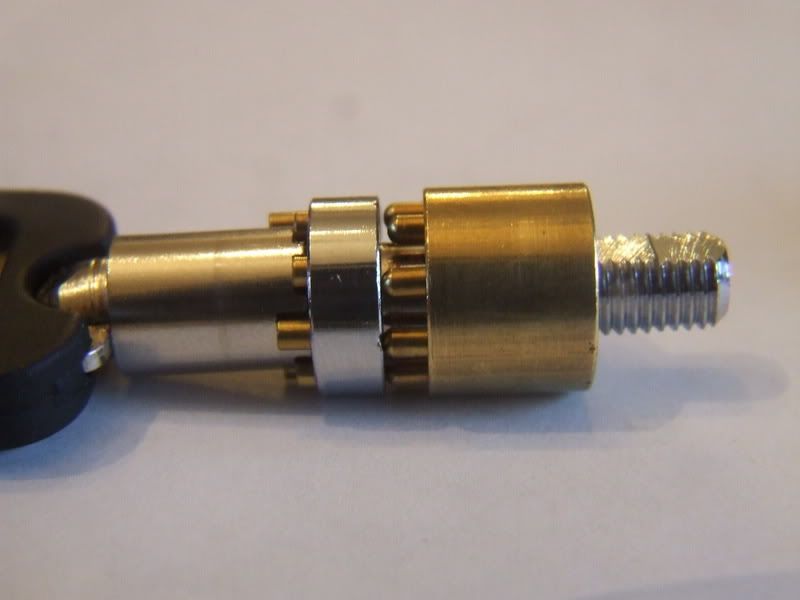

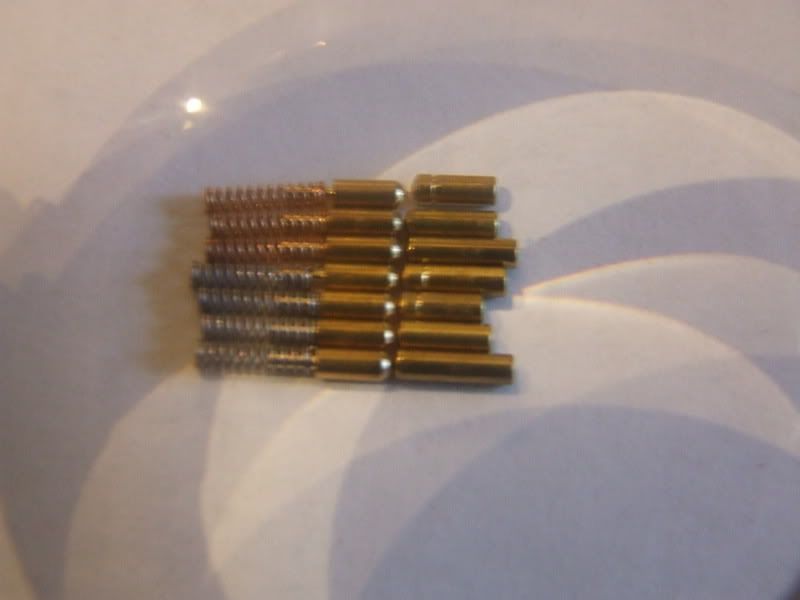

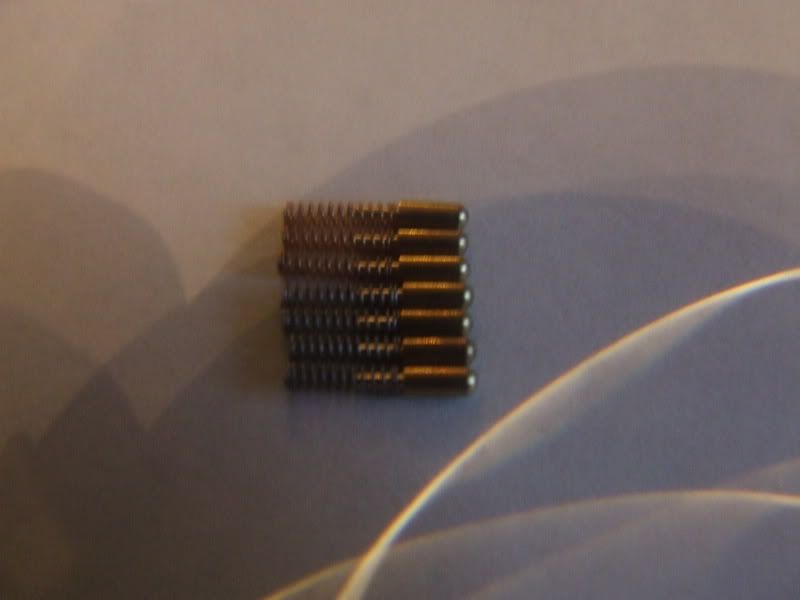

The Pins. Notice the serrated pins and two variety's of pins (different stiffness)

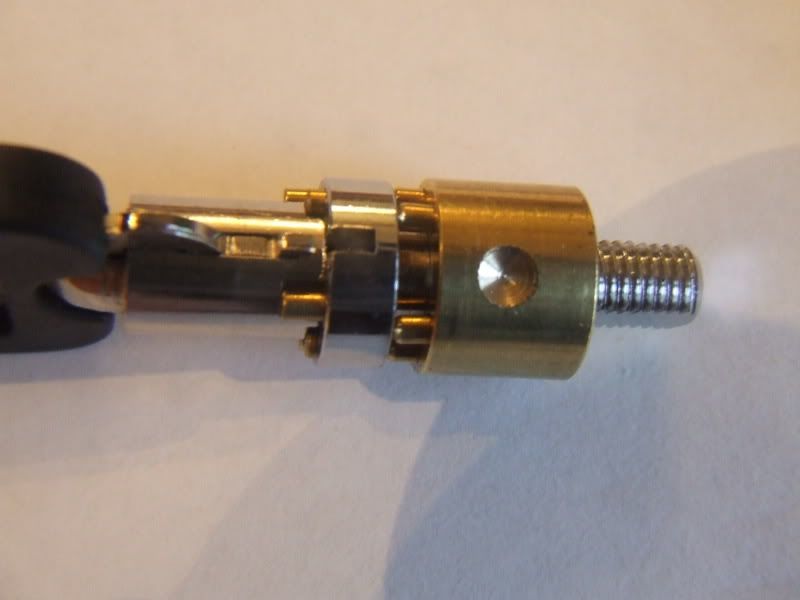

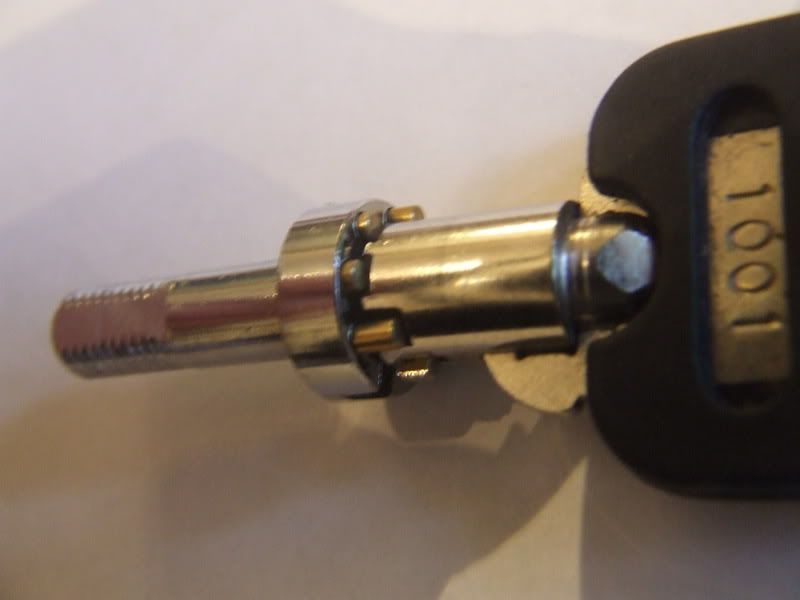

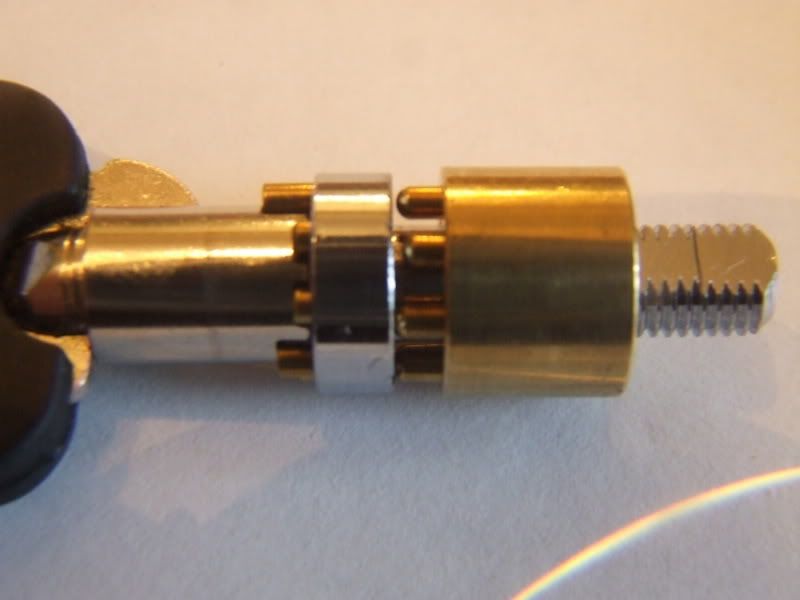

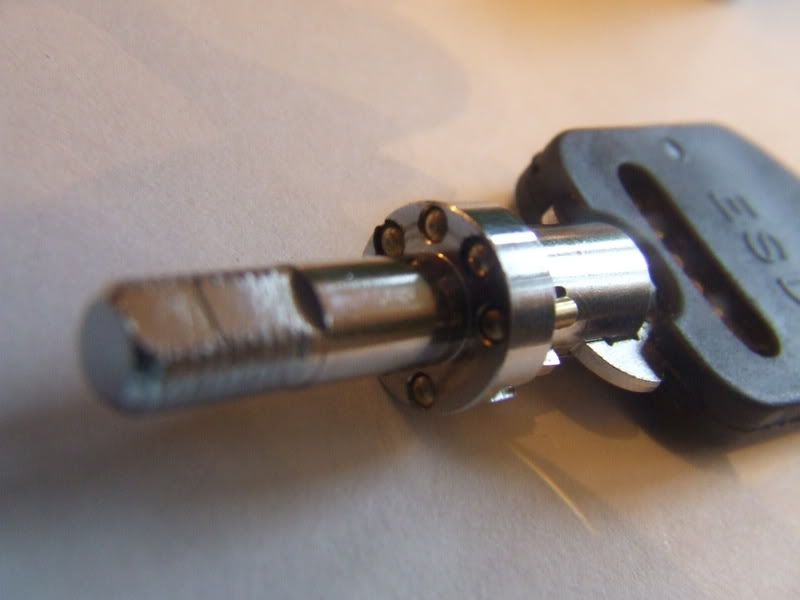

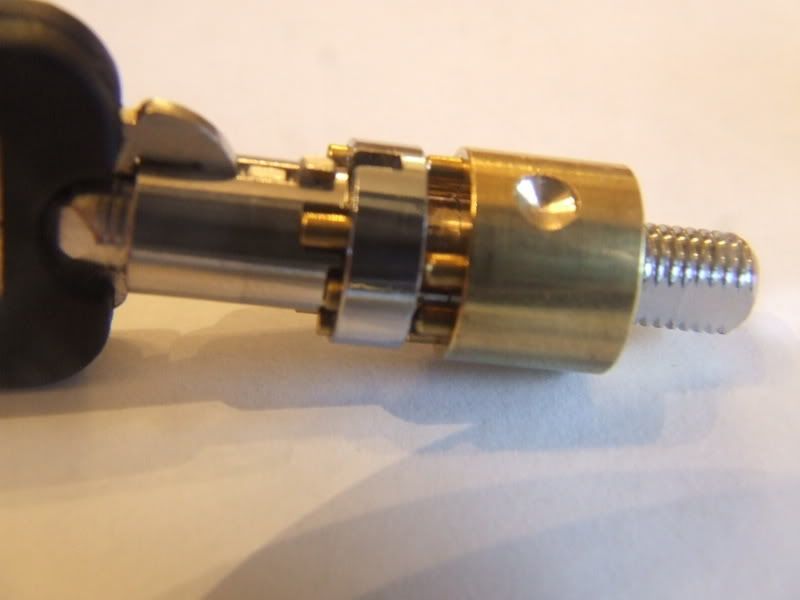

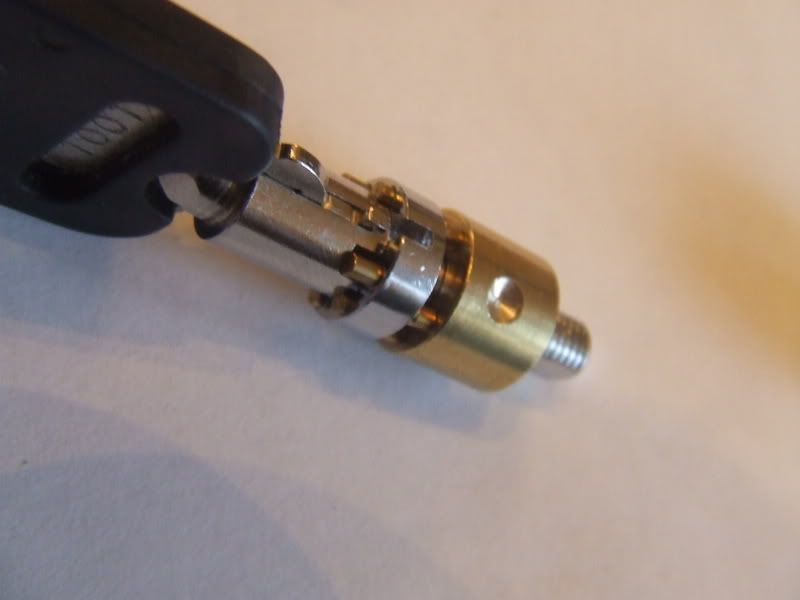

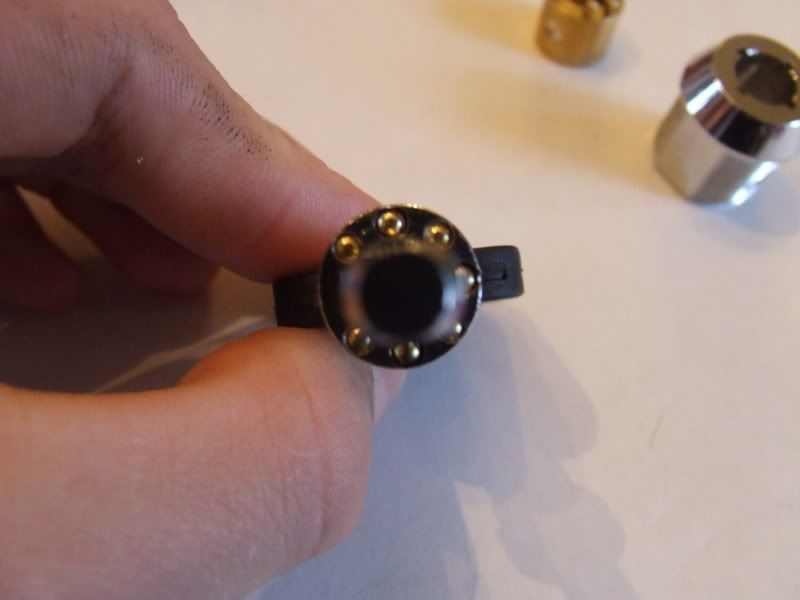

The key interacting with the pins.

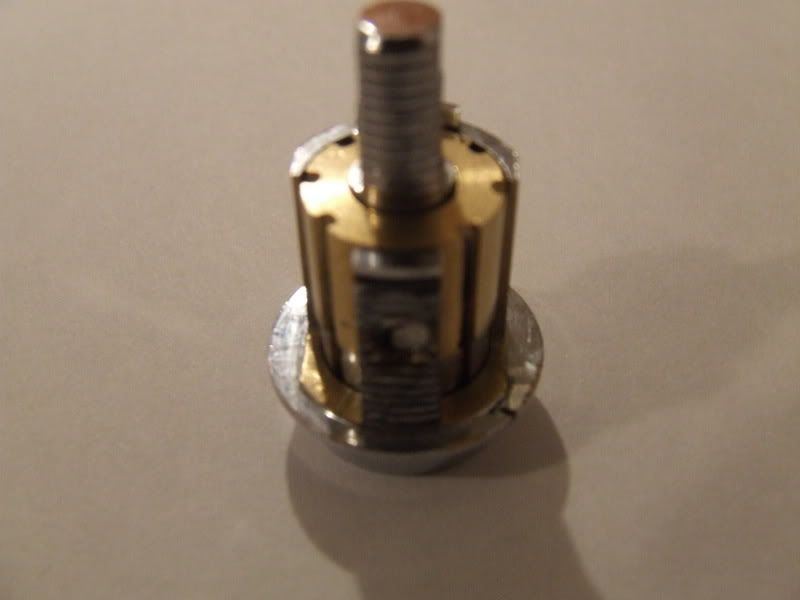

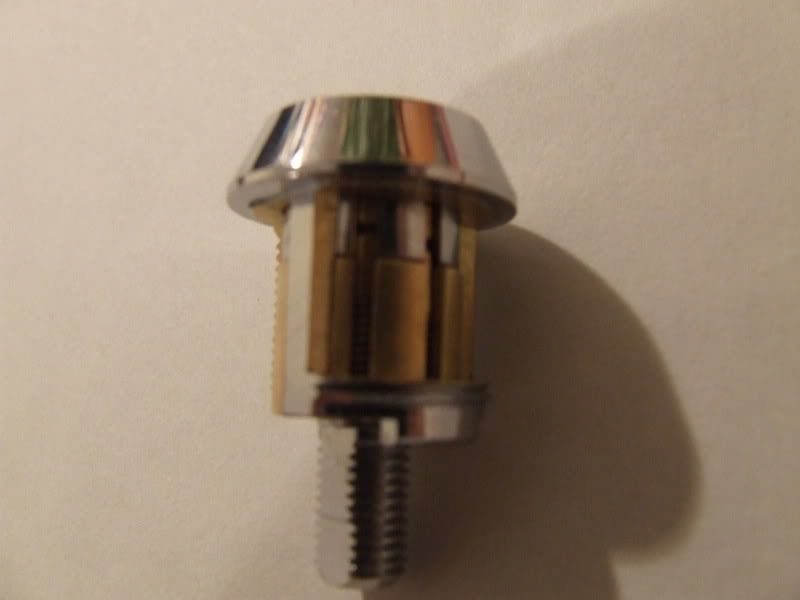

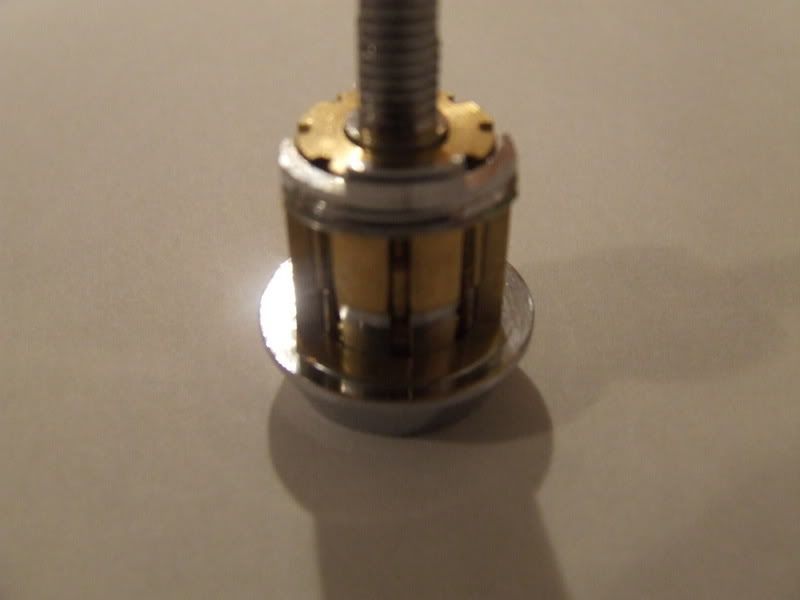

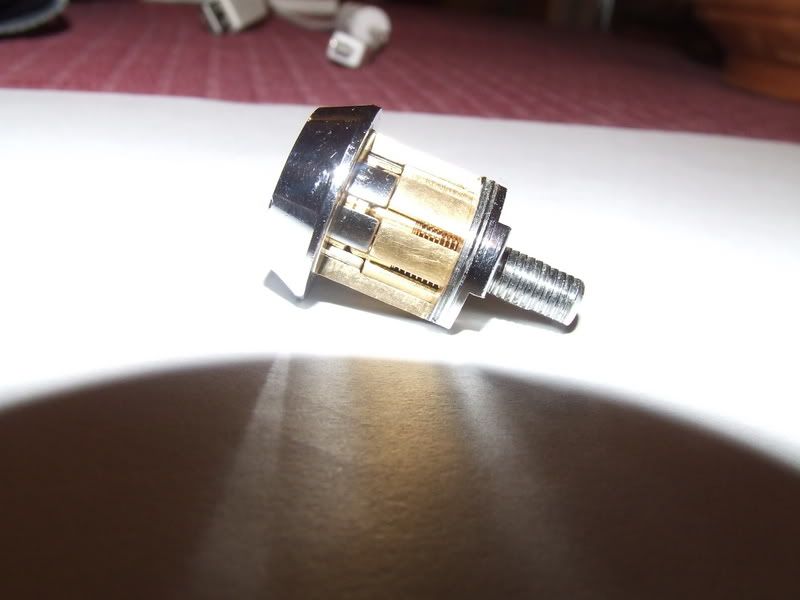

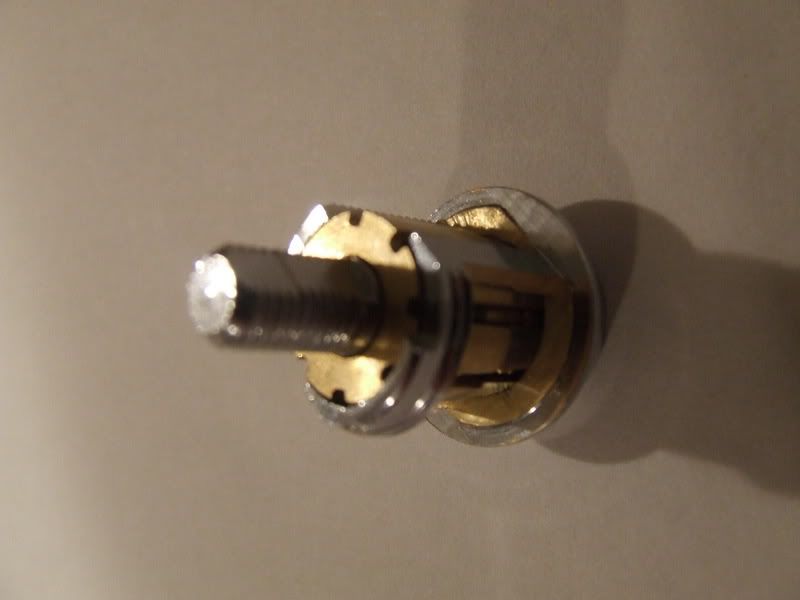

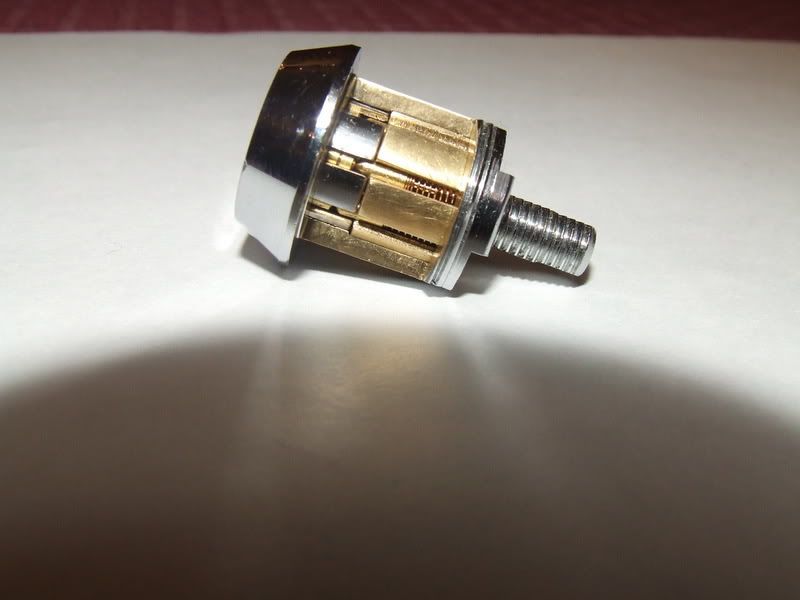

The cutaway,

Hope you like it,
It'll be up on ebay sometime after Christmas,
Unbreakable

by **dmux** » 10 Dec 2006 21:09

that is pretty, excellent illustration

by **scorpiac** » 10 Dec 2006 21:12

Very Nice!!!

Phil.

by **iNtago** » 10 Dec 2006 21:19

very VERY nice

*Lots of Large Picture Warning*

by **maxxed** » 10 Dec 2006 22:53

Nice job on the cutaway

by **What** » 10 Dec 2006 23:12

That is an awesome cutaway. much better than i could have done....

by **illusion** » 11 Dec 2006 6:44

Oh.... Nice work there.

I had made a few in a different style, but I am going to make one like this.

Thanks for sharing man. :wink:

by **Deathadder** » 12 Dec 2006 0:40

man, that is a Beautiful cutaway, I especially like the picture second from the bottom, just beautiful.

(bah large pictures dont scare me! :twisted:

)

by **mrdan** » 12 Dec 2006 1:45

Dang! Now I feel inspired to cut something open!! :twisted:

Thanks a lot!!

Nice pics indeed!

by **Legion303** » 12 Dec 2006 7:01

This makes understanding how tubular locks work (I had only a vague idea before) crystal clear. Thanks.

-steve

by mh » 12 Dec 2006 11:42

Good job, much nicer work than mine.

Cheers,
mh

by **Nasydave** » 12 Dec 2006 17:53

You know, if you really want a cutaway like that, I believe the inside of a VAN lock would work perfectly. THe slots are already cut, all you need is a washer at the back to keep the springs in ;-)

by **jordyh** » 12 Dec 2006 18:19

Why would any manufacturer make those cuts?
Are they of any use, besides demonstration?

Yours,
Jordy

by **Nasydave** » 13 Dec 2006 16:21

Actually, the VAN lock would only supply the brass section at the read. If you wanted the cutaways on the front section, you would still need to do those.

I don't know why vans are cut like that, though.
